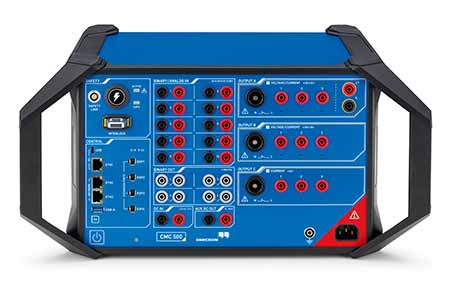

Enabling Grid Transformation: How the CMC 500 Advances Protection Testing

In the late 19th century, the development of the first electrical grids marked a technological breakthrough and transformed industries and societies. Early power systems were relatively simple, designed for one-directional power flow and limited demand. Protection schemes were straightforward, and testing requirements were predictable.

Today, utilities operate in a fundamentally different environment. Power systems have evolved into highly interconnected, digital infrastructures shaped by renewable integration, bidirectional power flows, and IEC 61850-based communication. At the same time, cybersecurity requirements, also in the context of more frequent firmware updates, and a shortage of skilled engineers are redefining how utilities approach protection testing.

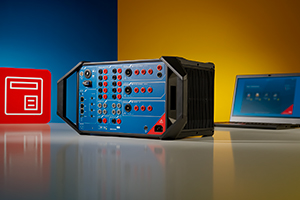

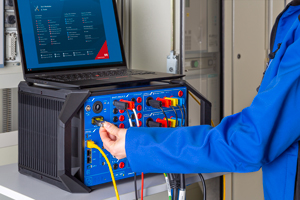

In this environment, protection testing is not a routine task but a critical factor for ensuring grid stability and reliability. Engineers must validate a wide range of applications, from conventional relays to systems based on Sampled Values and sensor inputs, while maintaining efficiency and compliance. The CMC 500 is designed to meet these evolving demands. It combines high performance, versatility, and a cyber-hardened design to help utilities streamline protection testing workflows, reduce operational risk, and ensure reliable protection system performance in an increasingly complex energy landscape. This is where the CMC 500 makes a difference:

• Minimizes Cyber Threats: The CMC 500’s cryptochip, secure-boot, and encrypted communication protect against cyber threats, ensuring the integrity of critical energy infrastructure. By making cyberattacks economically unviable, it helps maintain a stable energy supply and avoid costly disruptions.

• Reduces Testing Time: With its test templates and convertible current and voltage amplifiers, the CMC 500 cuts relay testing time by up to 80%. This efficiency leads to faster commissioning and maintenance of electrical systems, reducing downtime and operational costs.

• Supports Digitalization: As IEC 61850-based digital substations expand, the CMC 500 enables comprehensive testing of modern protection systems, including communication-based schemes and Sampled Values applications. This ensures reliable validation of protection performance under real-world conditions, supporting stable and efficient grid operation.
